| Specification | |

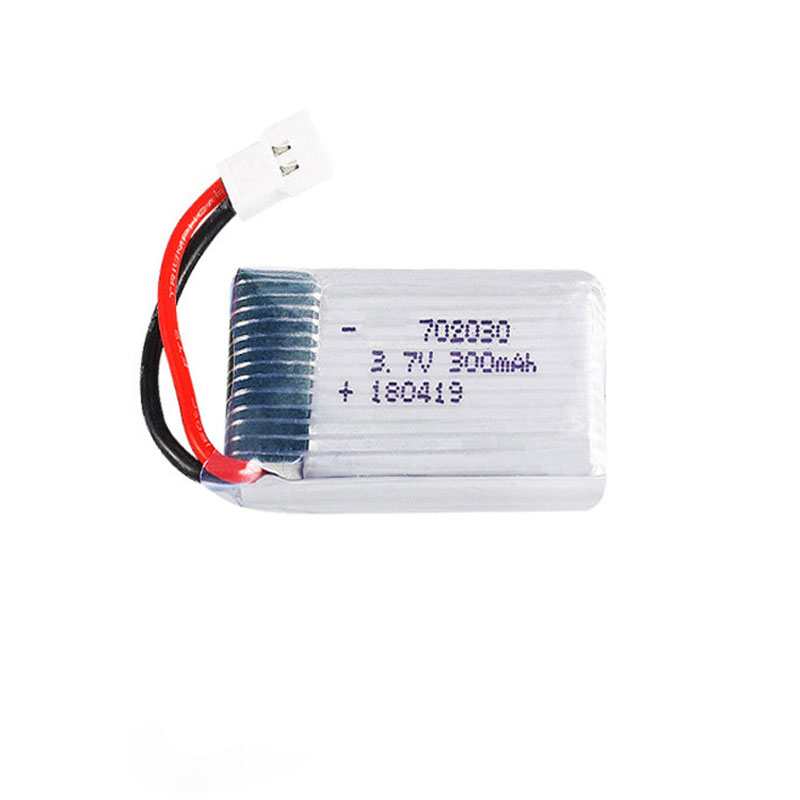

| Model No | 702030 |
| Nominal capacity | 300mAh |
| Nominal voltage | 3.7V |
| Charging cut-off voltage | 4.2V |
| Discharge cut-off voltage | 3.0V |
| Dimension | 7.0mm*20mm*30mm |
| Weight | 8.6g |
| Cycle life | 500 times |
| Suitable charge current | 0.5c |
| Maximum continuous discharge current | 25c |
| Temperature range | Charge 0 - 45 ℃ |
| Discharge -20 - 60 ℃ | |
| Storage -20 - 35 ℃ | |
| Storage Voltage | 3.7--3.85V |
| Key Features 1.High energy density lithium polymer battery. 2.Long cycle life,more than 500 cycles. 3.Environmental Friendly Chemistry 4.Minimal self-discharge | |
The below model list is only for reference. | |||||||||
| No. | Model | Capacity | Nominal Voltage | Dimensions (mm) | Weight | Remark | |||
| Typical | Nominal | Thickness | Width | Height | Approx. (g) | ||||
| (mAh) | (mAh) | (V) | (±0.2) | (±0.8) | (±0.8) | ||||
| 1 | 353048 | 270 | 250 | 3.7 | 3.5 | 30 | 48 | 7 | 5C-10C continuous Discharge rate |
| 2 | 703048 | 800 | 700 | 3.7 | 7 | 30 | 48 | 19 | |
| 3 | 503759 | 850 | 800 | 3.7 | 5 | 37 | 59 | 22 | |
| 4 | 603450 | 880 | 800 | 3.7 | 6 | 34 | 50 | 13.5 | |
| 5 | 803560 | 1250 | 1150 | 3.7 | 8 | 35 | 60 | 30.5 | |
| 6 | 883090 | 2000 | 1800 | 3.7 | 8.8 | 30 | 90 | 45.5 | |
| 7 | 555590 | 2300 | 2100 | 3.7 | 5.5 | 55 | 90 | 54.5 | 10C-15C continuous discharge rate |
| 8 | 353048 | 330 | 300 | 3.7 | 3.5 | 30 | 48 | 9 | |
| 9 | 703090 | 1400 | 1300 | 3.7 | 7 | 30 | 90 | 35.5 | |
| 10 | 854374 | 2100 | 2000 | 3.7 | 8.5 | 43 | 74 | 51.5 | |
| 11 | 453048 | 430 | 400 | 3.7 | 4.5 | 30 | 48 | 12 | 15C-20C continuous discharge rate |
| 12 | 753090 | 1500 | 1400 | 3.7 | 7.5 | 30 | 90 | 40 | |
| 13 | 683560 | 1000 | 950 | 3.7 | 6.8 | 35 | 60 | 27.5 | |
| 14 | 854374 | 2100 | 2000 | 3.7 | 8.5 | 43 | 74 | 55 | |
| 15 | 683560 | 1000 | 950 | 3.7 | 6.8 | 35 | 60 | 30 | 20C continuous discharge rate |
| 16 | 605590 | 2100 | 2000 | 3.7 | 6 | 55 | 90 | 67 | |
| 17 | 952951 | 1000 | 950 | 3.7 | 9.5 | 29 | 51 | 30 | |
| 18 | 902540 | 720 | 700 | 3.7 | 9.0 | 25 | 40 | 17 | 15C-20C continuous discharge rate |
| 19 | 902530 | 450 | 420 | 3.7 | 9.0 | 25 | 30 | 9 | |
| 20 | 852040 | 550 | 540 | 3.7 | 8.5 | 20 | 40 | 11 | |
| 21 | 803060 | 1400 | 1300 | 3.7 | 8.0 | 30 | 60 | 36 | |
| 22 | 802030 | 300 | 290 | 3.7 | 8.0 | 20 | 30 | 9 | |
| 23 | 302030 | 100 | 90 | 3.7 | 3.0 | 20 | 30 | 4 | |
| 24 | 373060 | 750 | 740 | 3.7 | 3.7 | 30 | 60 | 19 | |
| 25 | 401230 | 70 | 60 | 3.7 | 4.0 | 12 | 30 | 4 | |
| 26 | 502025 | 150 | 140 | 3.7 | 5.0 | 20 | 25 | 8 | |
| 27 | 502035 | 240 | 230 | 3.7 | 5.0 | 20 | 35 | 10 | |
| 28 | 602025 | 180 | 170 | 3.7 | 6.0 | 20 | 25 | 9 | |
| 29 | 6020120 | 1200 | 1100 | 3.7 | 6.0 | 20 | 120 | 31 | |
| 30 | 803060 | 1400 | 1300 | 3.7 | 8.0 | 30 | 60 | 36 | |
